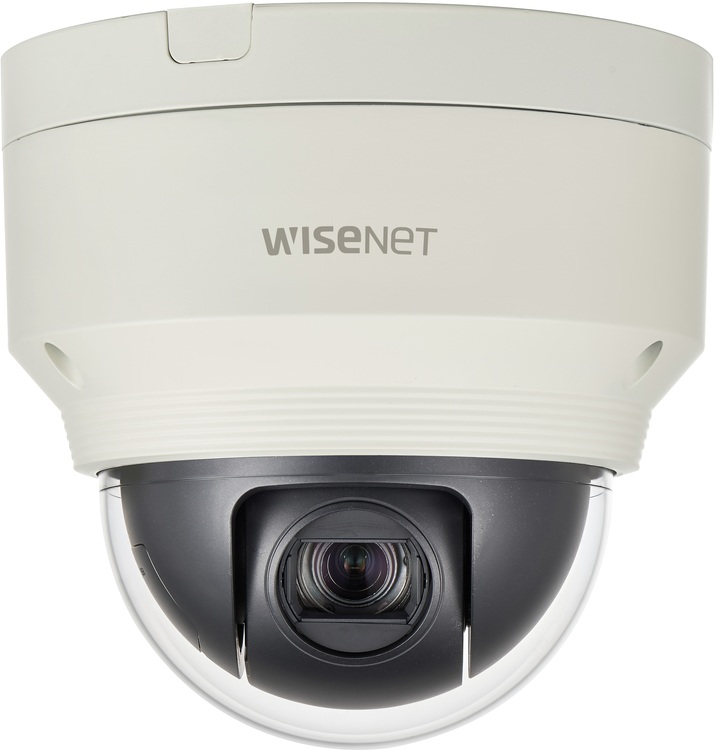

Hanwha Wisenet X Series XNP-6120H 2MP Outdoor Mini PTZ With Vari Focal Lens
Web ID: 742
Wisenet X powered by Wisenet 5 network outdoor PTZ camera, 2MP, Full HD(1080p) @ 60fps WDR off/on(120dB) or @30fps WDR on(150dB), 12X optical zoom lens (5.2mm ~62.4mm) (54.58 ~ 5.30), Pan: 360 Endless. Tilt: -5~ 185, H.265/H.264/MJPEG, WiseStream II compression technology, 150dB WDR, USB port for easy installation, advanced video analytics and sound classification, true D/N, dual SD card, HLC, Defog detection, DIS, 12VDC/PoE, IP66, IK10, -22F ~ 131F
Manufacturer PN: XNP-6120H
Warranty: 3 Year
Manufacturer Website
This product cannot be purchased online. Please call for pricing.
XNP-6120H
Hanwha Wisenet X Series 2MP Outdoor Mini PTZ With Vari Focal Lens
Key Features
- Max. 2Megapixel (1920 x 1080) resolution
- 16 : 9 Full HD (1080p) resolution support
- 5.2 ~ 62.4mm (12x) optical zoom, 32x digital zoom
- H.265, H.264, MJPEG codec support, Multiple streaming
- Day & Night (ICR), WDR (150dB), Intelligent video analytics
- SD/SDHC/SDXC memory slot (Max.512GB)
- IP66, IK10, Bi-directional audio support
| Make | Hanwha Techwin America |
|---|---|
| Manufacturer | Hanwha Techwin America |
| Model code | XNP-6120H |
| Series | WISENET X SERIES |
| Chip Inch Size | 1/3 |
| Colour Type | Colour / Monochrome |
| Resolution TVL | 2MP |
| HD | Yes |
| Megapixel | Yes |
| Dome Type | PTZ |
| Sensitivity lux | 0.003 ~ 0.03 |
| Pan Speed o/ sec | Preset : 350, Manual : 0.024 ~ 200 |
| Tilt Speed o/ sec | Preset : 350, Manual : 0.024 ~ 200 |
| Indoor/Outdoor | Indoor/Outdoor |
| Digital (DSP) | Yes |
| Electrical Specifications | Voltage: 12 V DC, PoE Power Consumption: 12 W |
| Focal length | 5.2 ~ 62.4 mm |
| Presets | 300 |
| Compression | H.265 / H.264 (MPEG-4 part 10/AVC), Motion JPEG |
| Back Light Compensation | Yes |
| Auto Gain Control | Yes |
| White Balance | Yes |
| Electronic Shutter range | 2 ~ 1/12,000sec |
| S/ N (Signal/ Noise) Ratio dB | 50 |
| Zoom Ratio | x12 |
| Network Properties | Interface: RJ-45 (10/100BASE-T) Network Protocols: TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour Image Frame Rate: 60 fps |
| Physical Specifications | Dimensions mm: 168 x 162 Weight g: 1900 |
| Environmental Specifications | Operating Temp oC: -30 ~ +55 C (-22 ~ +131 F) Operating Humidity %: < 90 Protection: IP66, IK10 |
| System Requirments | Operating System: Windows 7, 8.1, 10, Mac OS X 10.10. 10.11 10.12 Web Browser: Google Chrome, MS Edge, Mozilla Firefox (Window 64bit only), Apple Safari 10 (Mac OS X only) |
| Additional info |
|
