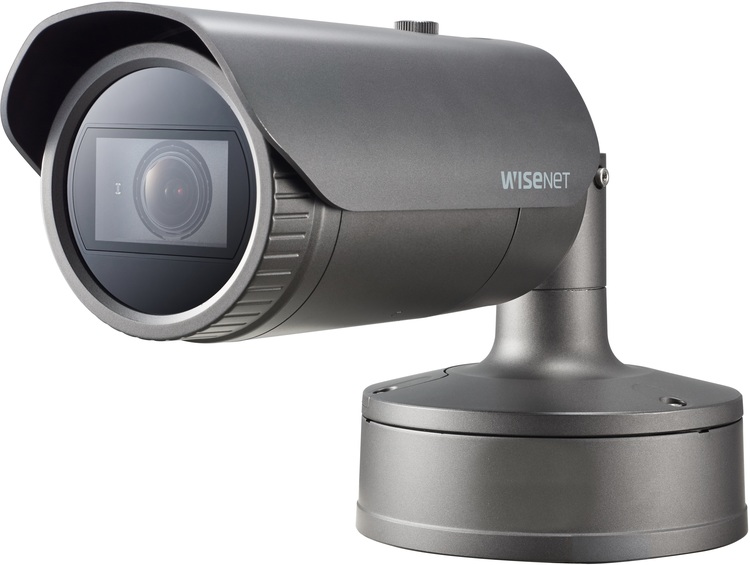

Hanwha Wisenet X Series XNO-8080R 5MP Outdoor Bullet Camera With IR & Vari Focal Lens

Web ID: 740

Wisenet X powered by Wisenet 5 network IR outdoor bullet camera, Back box, 5MP @30fps WDR off/on, motorized Vari-Focal Lens 2.4x (3.7~9.4mm) (100.2~38.7), H.265/H.264/MJPEG, WiseStream II compression technology, 120dB WDR, USB port for easy installation, advanced video analytics and sound classification, high powered IR LEDs range of 164', True D/N, Dual SD card, Hallway view, HLC, Defog detection with simple focus, DIS , 12VDC/24VAC/PoE, IP67, IK10, NEMA 4X, built-in -40F Heater
Manufacturer PN: XNO-8080R
Warranty: 3 Year
Manufacturer Website

XNO-8080R
Hanwha Wisenet X Series 5MP Outdoor Bullet Camera With IR & Vari Focal Lens

Key Features

  • Max. 5megapixel (2560 x 1920) resolution
  • 3.7 ~ 9.4mm (2.5x) motorized varifocal lens
  • Max. 30fps@all resolutions (H.265/H.264)
  • H.265, H.264, MJPEG codec supported, Multiple streaming
  • Day & Night (ICR), WDR (120dB), Defog
  • Loitering, Directional detection, Fog detection, Audio detection, Digital auto tracking, Sound classification, Tampering
  • Motion detection, Handover
  • SD/SDHC/SDXC memory slot (Max. 512GB)
  • Hallway view, WiseStream II support
  • IR viewable length 50m, IP67/IP66, NEMA 4X, IK10
  • LDC support (Lens Distortion Correction)
  • PoE / 24V AC, 12V DC, Bi-directional audio support
Make Hanwha Techwin America
Manufacturer Hanwha Techwin America
Model code XNO-8080R
Series WISENET X SERIES
Chip Inch Size 1/2
Colour Type Colour / Monochrome
Resolution 5MP
Digital (DSP) Yes
Specialist Type Infrared
Sensitivity Lux 0 ~ 0.07
Auto Iris Yes
Direct Drive Yes
Electrical Specifications Voltage: 12 V DC, 24 V AC, PoE
Power Consumption: 12.5 ~ 14.5 W
Focal Length mm 3.7 ~ 9.4
Wide Dynamic Range Yes
Picture Elements HxV 2616 x 1976
Network Properties Image Frame Rate: 30 fps
Interface: RJ-45 (10/100 BASE-T)
Network Protocols: TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour
Back Light Compensation Yes
Auto Gain Control Yes
White Balance Yes
Electronic Shutter Range 2 ~ 1/12,000sec
S/ N (Signal/ Noise) Ratio dB 50
Compression Type H.265 / H.264 (MPEG-4 part 10/AVC) : Main / Baseline / High, MJPEG
Physical Specifications Weight g: 2180
Dimensions mm: 91 x 369
Environmental Specifications Protection: IP67, IP66, IK10
Operating Temperature oC: -40 ~ +55C (-40 ~ +131 F)
Operating Humidity %: > 90
System Requirements Operating System: Windows 7, 8.1, 10, Mac OS X 10.10, 10.11, 10.12
Web Browser: Google Chrome 54, MS Edge 38, Mozilla Firefox 49 (Window 64bit only), Apple Safari 9 * Mac OS X only
Additional info
  • Loitering, Directional detection, Fog detection, Audio detection, Digital auto tracking, Sound classification, Tampering
  • Motion detection, Handover
  • SD/SDHC/SDXC memory slot (Max. 512GB)
  • Hallway view, WiseStream II support
  • IR viewable length 50m, IP67/IP66, NEMA 4X, IK10
  • LDC support (Lens Distortion Correction)
