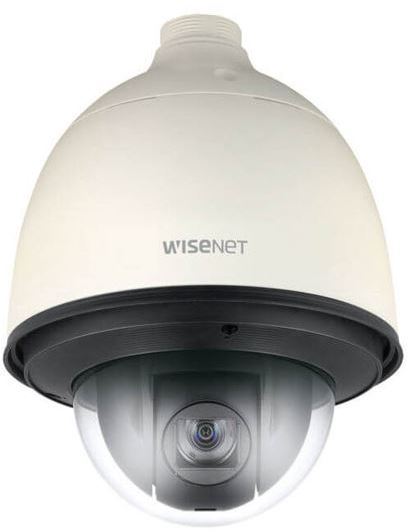

Hanwha Wisenet QNP-6230H 2MP Outdoor PTZ With Vari Focal Lens

Web ID: 772

Wisenet Q network outdoor PTZ camera, 2MP, Full HD(1080p) 30fps, H.265/H.264/MJPEG, Optical Zoom Lens 23x (4.44-102.1mm), 120dB WDR, true D/N, 500/sec Pan, SD/SDHC/SDXC, 24VAC/PoE+, Analytics, IP66, IK10, Heater on -58F 24VAC
Manufacturer PN: QNP-6230H
Warranty: 3 Year
Manufacturer Website

QNP-6230H
Hanwha Wisenet 2MP Outdoor PTZ With Vari Focal Lens

Key Features

  • Max. 2MP (1920 x 1080) resolution
  • H.265, H.264, MJPEG codec support
  • Multiple streaming, WiseStreamII support
  • Day & Night (ICR), WDR (120dB)
  • DIS with Built-in Gyro sensor
  • Tampering, Motion detection
  • Memory slot (Max. 256GB)
  • IP66, IK10 (QNP-6230H), IK10 (QNP-6230 + SHP-3701H only)
Make Hanwha Techwin America
Manufacturer Hanwha Techwin America
Model code QNP-6230H
Series WISENET Q SERIES
Chip Inch Size 1/3
Colour Type Colour / Monochrome
Resolution TVL 2MP
Megapixel Yes
Sensitivity lux 0.01 ~ 0.2
Indoor/Outdoor Indoor/Outdoor
Digital (DSP) Yes
Electrical Specifications Voltage: 24 V AC, PoE
Power Consumption: 20 ~ 65 W
Focal length 4.44 ~ 102.2mm
Compression H.264, H.265, MJPEG
Back Light Compensation Yes
Auto Gain Control Yes
White Balance Yes
Electronic Shutter range 1 ~ 1/12,000s
Video Output CVBS : 1.0 Vpp / 75Ω composite
Network Properties Interface: RJ-45 (10/100 BASE-T)
Network Protocols: TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour
Image Frame Rate: 30 fps
Physical Specifications Dimensions mm: 223 x 294
Weight g: 3,300
Environmental Specifications Operating Temp oC: -50 ~ +55 C (-58 ~ +131 F)
Operating Humidity %: 0 ~ 90
Protection: IP66, IK10
System Requirments Operating System: Windows 7, 8.1, 10, Mac OS X 10.10, 10.11, 10.12 Plug-in Free Webviewer
Web Browser: Google Chrome, MS Edge, Mozilla Firefox (Window 64bit only), Apple Safari 10 (Mac OS X only
Additional info
  • Max. 2MP (1920 x 1080) resolution
  • H.265, H.264, MJPEG codec support
  • Multiple streaming, WiseStreamII support
  • Day & Night (ICR), WDR (120dB)
  • DIS with Built-in Gyro sensor
  • Tamepring, Motion detection
