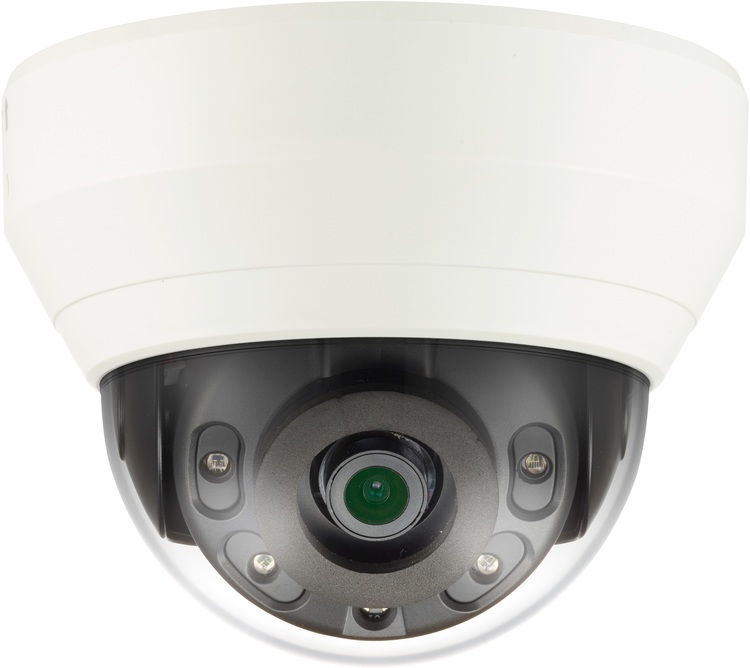

Hanwha Wisenet Q Series QND-6010R 2MP Internal Dome Camera With IR & 2.8mm Lens

Web ID: 663

The QND-6010R from Hanwha's Q Series affordable network camera line is a 2MP indoor dome network camera featuring WiseStream, Hanwha's compression technology, triple codec H.265/H.264/MJPEG, 2.8mm lens, IR, PoE/12VDC, 120dB True WDR, Defocus Detection, Hallway View, one-way audio and SD card slot (SD/SDHC/SDXC up to 128GB).
Manufacturer PN: QND-6010R
Warranty: 3 Year
Manufacturer Website

QND-6010R
Hanwha Wisenet Q Series 2MP Internal Dome Camera With IR & 2.8mm Lens

Key Features

  • Max. 2M (1920 x 1080) resolution
  • Built-in 2.8 mm fixed lens (QND-6010R)
  • Built-in 3.6 mm fixed lens (QND-6020R)
  • Built-in 6 mm fixed lens (QND-6030R)
  • Max. 30fps@2M resolutions (H.265/H.264)
  • H.265, H.264, MJPEG codec supported, Multiple streaming
  • Motion detection, Tampering, Defocus detection
  • micro SD (128GB) memory slot, PoE / 12V DC
  • IR viewable length 20m, IK08
  • Hallway view, WiseStream support
  • LDC support (Lens Distortion Correction)
Make Hanwha Techwin America
Manufacturer Hanwha Techwin America
Model code QND-6010R
Series WISENET Q SERIES
Chip Inch Size 1/3
Colour Type True Day / Night
Resolution TVL 2MP
HD Yes
Megapixel Yes
Sensitivity lux 0 ~ 0.15
Indoor/Outdoor Indoor/Outdoor
Digital (DSP) Yes
Electrical Specifications Voltage: 12 V DC, PoE
Power Consumption: 5.8 ~ 7 W
Focal length 2.8mm
Compression H.265, H.264, MJPEG
Back Light Compensation Yes
Auto Gain Control Yes
White Balance Yes
Built-in IR LED Yes
Network Properties Interface: RJ-45 (10/100BASE-T)
Network Protocols: TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour
Image Frame Rate: 15 ~ 30 fps
Physical Specifications Dimensions mm: 110 x 86
Weight g: 290
Environmental Specifications Operating Temp oC: -10 ~ +55 C (14 ~ 131 F)
Operating Humidity %: 0 ~ 90
Protection: IK08
System Requirments Operating System: Windows 7, 8.1, 10, Mac OS X 10.9, 10.10, 10.11
Web Browser: Google Chrome 47, MS Edge 20
Additional info
  • Max. 30fps@all resolutions (H.265/H.264)
  • H.265, H.264, MJPEG codec supported, Multiple streaming
  • Motion detection, Tampering, Defocus detection
  • micro SD (128GB) memory slot, PoE / 12V DC
  • IR viewable length 20m, IK08
  • Hallway view, WiseStream support
  • LDC support (Lens Distortion Correction)
