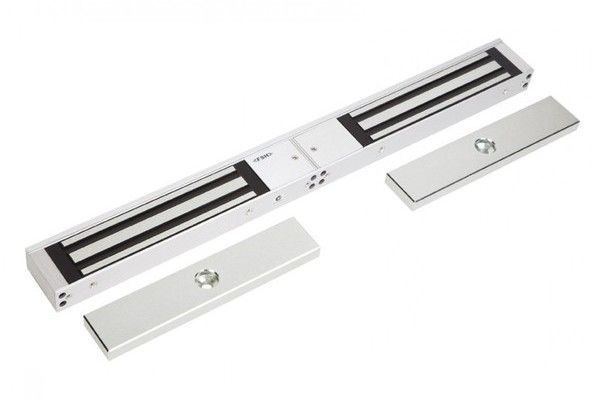

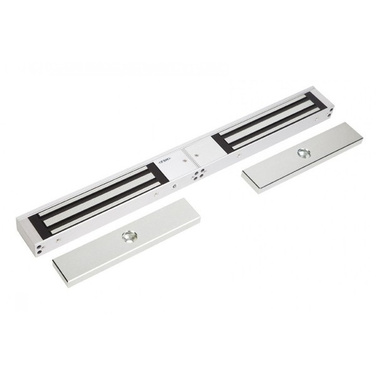

FSH FEM3500DM Slimline Standard Double Magnetic Lock Monitored

Web ID: 245

Door and Lock Status Monitoring Sensor, (DSS & LSS with M Models), Built-in varistor (MOV) surge protection, CE/C-Tick, SCEC Approved for secure area (FEM5700M&DM), Anti Tamper Plate (with M Models), Long distance Light Panel (LP), Lifetime warranty, 4 hour fire tested, No residual magnetism
Manufacturer PN: FSHFEM3500DM
Warranty: 3 Year
Manufacturer Website

$574

The FEM3500 is an unmonitored single magnetic lock and FEM3500D is an unmonitored double magnetic lock with dual 12 or 24 Volt settings.



The FEM3500M is a monitored single magnetic lock and the FEM3500DM is a monitored double magnetic lock both with 12 or 24 Volt settings. Each monitored magnetic lock has a built-in Hall Effect Sensor for remote monitoring of Lock status (LSS). The devices have a highly visible high luminosity Light Panel and a Door Status Sensor (DSS) for remote monitoring of the door status as well as Lock Status Sensor (LSS). The monitored devices come with a patented Anti-Tamper-Security-Plate as standard to prevent hostile attacks on the dome-nut-fixing bolt of the Armature Plate.



All FEM3500 Series Electro Magnetic Locks come with a lifetime warranty and have no residual magnetism.

PART No.

FEM3500(Single)

FEM3500D(Double)

FEM3500M(Single)

FEM3500DM(Double)

FEM3500FM (Flush Mounted)

HOLDING STRENGTH

Up to 280kg

Up to 280kg

Up to 280kg

VOLTAGE/CURRENT

Dual Voltage 12/24VDC, 12VDC= 500mA (Double x2) 24VDC= 250mA (Double x2)

Dual Voltage 12/24VDC, 12VDC= 500mA (Double x2) 24VDC= 250mA (Double x2)

Dual Voltage 12/24VDC, 12VDC= 500mA (Double x2) 24VDC= 250mA (Double x2)

APPROVALS

4 hour fire rated to A.S. and B.S. standards

4 hour fire rated to A.S. and B.S. standards

4 hour fire rated to A.S. and B.S. standards

MONITORING

NIL

LP

LSS

DSS

LSS

SIZE

Single door series magnet size:

L= 238 x W= 48 x D= 25mm

Single door series armature plate size:

L= 185 x W= 38 x D= 12mm

Single door series DSS-armature plate size:

L= 185 x W= 38 x D= 12mm

Double door series surface magnet size:

L= 477 x W= 48 x D= 25mm

Double door series armature plate size:

L= 185 x W= 38 x D= 12mm x 2 pcs

Double door series DSS-armature plate size:

L= 185 x W= 38 x D= 12mm x 2 pcs
